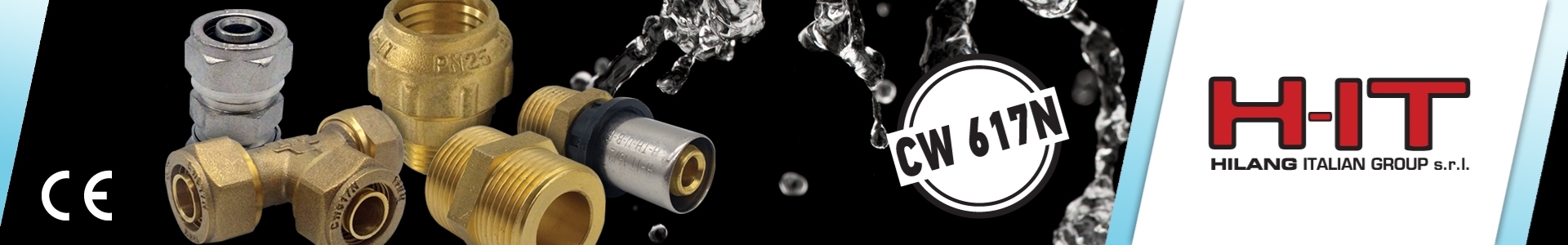

Picture of H-IT Fittings

H-IT Fittings

The H-IT trademark is registered under TZANOS Group of Companies. It was created with the aim of producing high quality products at affordable prices, for water supply and heating systems. TZANOS Group of Companies has invested in its own moulds from high quality joint venture production, providing Full Quality Assurance. Products are randomly checked.

H-IT fittings are made from CW617N alloy according to EN 12165 and EN 12164/5. Threads are manufactured to ISO 7

Η-ΙΤ Solder & Threaded Brass Fittings

H-IT brass fittings are 100% forged and the alloy has a copper content of 58% to 60%. Production methods as well as the strict quality control of the alloy, have ensure high quality and resistance to mechanical stress during installation and corrosion due to potential water hardness

H-IT brass fittings are available in a full range of shapes and sizes from 15 to 42mm & 3/8 "to 3".

Benefits

  • H-IT brass fittings offer excellent sealing, thanks to the large flange depth
  • They are 100% forged offering advanced strength, which allows them to maintain their dimensions and tolerances even at high temperatures.
  • They have a cylindrical thread for quick and easy installation
  • Precision in dimensions
  • Standard tolerances according to international standards
  • High weight index
  • High resistance to pressure
  • The brass used for its production is suitable for drinking water systems

Applications

Plumbing & Water Supply Systems Plumbing & Water Supply Systems
Drinking Water Drinking Water
Heating Heating
Air conditioning Air conditioning
Cooling Cooling
Solar Energy Solar Energy
Steam Steam

H-IT Compression Fittings

H-IT compression fittings are the most suitable for connections of any hydraulic application under pressure, thus covering all demands in any heating and water supply system. They are made of high quality brass CW617N, with a copper content of 58% -60% according to the EN12165 standard. The thread is made to ISO 7.

They are suitable for Copper, Steel, Stainless and Plastic pipe connections.

The H-IT compression fitting series features an extensive range of fitting and dimensions from Ø15mm to Ø42mm

Benefits

  • Certified copper content of 58-60%
  • They feature a specially processed ring, the elasticity of which ensures easy fitting connection and detachment
  • They offer excellent sealing, thanks to the large flange depth
  • They are 100% forged offering advanced strength, which allows them to maintain their dimensions and tolerances even at high temperatures.
  • They have a cylindrical thread for quick and easy installation

Applications

Plumbing Plumbing
Drinking Water Drinking Water
Heating Heating
Gas Gas
Cooling Cooling

H-IT INOX Fittings

Facilitating and accelerating any installation process, H-IT INOX fittings do not require expensive tools and they are particularly resistant to high pressures and temperatures. They are made of high quality CW617N brass, with a copper content of 58% -60% according to the EN12165 standard. Threads are manufactured to ISO 7. There is also an alternative connection possibility, i.e. using a set of chrome brass nut, a suitable stainless steel ring and a Klingerit gasket.

Suitable for stainless steel pipe connections.

The series features a wide range of fittings in various dimensions.

Benefits

  • Installation tools are not necessary
  • Highly resistant to pressures and high temperatures
  • Safe connection not just for the specific type of pipe but also for any kind of identical pipe due to the special design of the crescent
  • The dimensional tolerances of the crescent flange are designed in such a way that the fittings are fully compatible with almost 90% of stainless steel hoses

Applications

Heating Heating
Solar and forced circulation systems Solar and forced circulation systems
Plumbing & water supply networks Plumbing & water supply networks
Air Conditioning Air Conditioning
Ventilation Ventilation
Chemical and Petrochemical Installations Chemical and Petrochemical Installations
Oil Oil
Gas Gas
Shipbuilding and Aerospace Shipbuilding and Aerospace
Drilling Drilling
Food Processing Plants Food Processing Plants

H-IT Compression Fittings for Polyethylene Pipes

The H-IT compression fittings for polyethelene pipes offer fast, 100% waterproof and safe installation thanks to the specially processed ring, the specially designed nozzle and the extra deep flange. They are made of high-quality CW617N brass, with a copper content of 58% -60% according to EN12165. Thread is manufactured to ISO 7.

They are suitable for Polyethylene and Plastic pipe connections.

Range includes a wide variety in fittings and dimensions from Ø15mm to Ø32mm, as well as wall plate elbows.

Benefits

  • Certified copper content of 58-60%
  • Specially processed clamping ring which, due to its high elasticity, does not deform and allows easy fitting disconnection and reconnection
  • Fully forged ensuring high strength maintaining constant dimensions and tolerances
  • Large flange depth that allows the fitting into the plastic pipe, ensuring complete sealing
  • Surfaces of the nozzle and clamping ring have been fully processed to protect the pipe from any stress
  • Fast and easy installation due to the conic thread

Applications

Plumbing & Water Supply Systems Plumbing & Water Supply Systems
Heating Heating
Underfloor Heating Underfloor Heating
Cooling Cooling
Solar Energy Solar Energy

H-IT Compression Fittings for P.P.R. - P.E.

H-IT P.P.R. compression fittings offer a connection alternative, achieving equally excellent sealing than welded fittings as well as faster and easier installation. They are made of high quality CW617N brass, with a copper content of 58% -60% according to EN12165. Thread is manufactured to ISO 7.

The series includes a wide range of fittings. Dimension range from Ø20mm έως Ø63mm.

Benefits

  • Certified copper content of 58-60%
  • Increased thickness for high resistance to high temperatures and pressures, up to PN25
  • Manufactured according to EN 1254 European standards and ISO 7/1 (conic threads)
  • The primary material used for production are complying with the ΕΝ 12164, ΕΝ 12165 and ΕΝ 1982 standards
  • Brass used during the whole production process is suitable for drinking water systems

Applications

Heating Heating
Plumbing & Water Supply Systems Plumbing & Water Supply Systems
Air Conditioning Air Conditioning
Cooling Cooling
Underfloor Heating Underfloor Heating
Industrial UseIndustrial Use
Solar and forced circulation systems Solar and forced circulation systems
Gas Distribution Gas Distribution
Irrigation Irrigation

H-IT Compression Fittings for Multi-layer PEX-AL-PEX & Pex Pipes

The H-IT compression fittings for PEX-AL-PEX & Pex Pipes are the chrome version of the classic series, except that they include an additional double sealing O-Ring, which act as a catalyst in the phenomenon of electrolysis and at the same time they pose less stress on the intermediate layer of aluminum at the joints. They can also be used to connect all other types of polyethylene pipes.

They are suitable for multi0layer and PEX-AL-PEX and Pex pipes

The series include a wide range of fittings. Dimensions range from Ø16mm to Ø26mm.

Benefits

  • Certified copper content of 58-60%
  • Large flange depth ensures full waterproofing
  • The double sealing O-rings with the corresponding plastic act as a catalyst to the electrolysis phenomenon prevention
  • The brass clamping ring is suitable for pipe types and assists in preventing pipe destruction during sealing

Applications

Plumbing & Water Supply Systems Plumbing & Water Supply Systems
Drinking Water Systems Drinking Water Systems
Heating Heating
Underfloor Heating Underfloor Heating
Cooling Cooling
Solar Energy Solar Energy

H-IT Pressed Brass Fittings PRESS-PEX

The H-IT Pressed Brass Fittings PRESS-PEX are made from high quality CW617N brass. These fittings offer great advantages with regard to corrosion and long life performance. They are equipped with EPDM O-rings that exclude the possibility of electrolysis occurring and offer perfect seal.

Suitable for multi-layer and polyethelene pipes

The series include a wide range of fittings. Dimension range from Ø16mm to Ø32mm.

Benefits

  • Suitable for all press types (H, HT, U, B, F)
  • They offer absolute pressing, pipe disconnection i impossible
  • Easy application, very fast connection

Applications

Plumbing & Water Supply Systems Plumbing & Water Supply Systems
Drinking Water Systems Drinking Water Systems
Heating Heating
Underfloor Heating Underfloor Heating
Cooling Cooling
Solar Energy Solar Energy

Downloads

Brochures
For more information regarding Pricelists, Technical Data, Manuals & Warranties, please click here.
